Proudly Designed and Made in USA

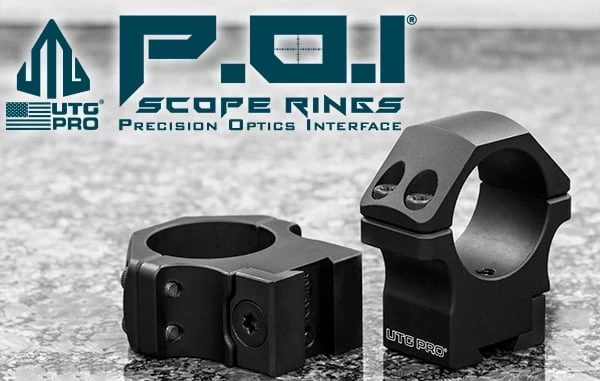

Medium Profile Precision Optics Interface (P.O.I®) Scope
Rings Have a 28mm Center Height to Fit 1″ Tube Optics with up to a 55mm
Outer Objective Diameter
The innovative Precision Optics Interface (P.O.I®) Addresses
3 of the Most Critical Areas in Scope Rings –

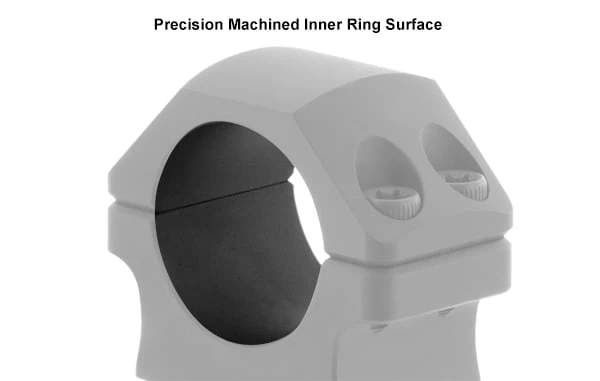

a) Progressively Machined and Precise Inner Diameter to
Achieve a Seamless Interface Between the Scope Ring and Tube

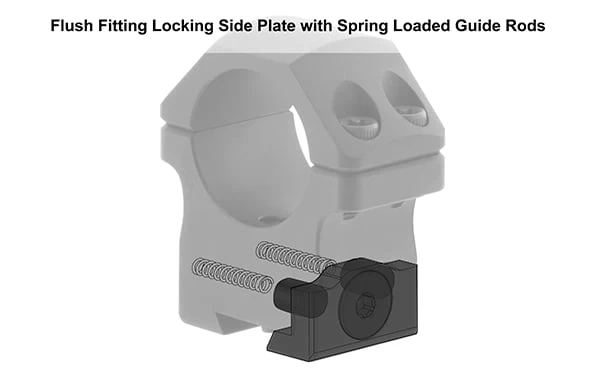

b) Torx Screw Locking Side Plate Controlled by Dual Spring
Loaded Guide Rods Precisely Clenches Dovetail Rail for a Secure and Repeatable
Zero Hold

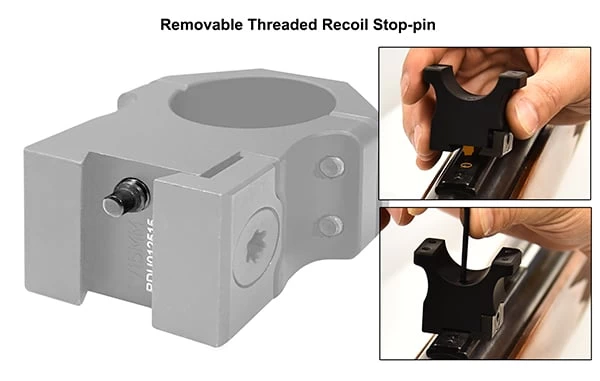

c) Removable Threaded Recoil Stop-pin Provides an Additional
Interface Point with the Dovetail Rail for Added Security Against Bidirectional
Recoil
•            Original

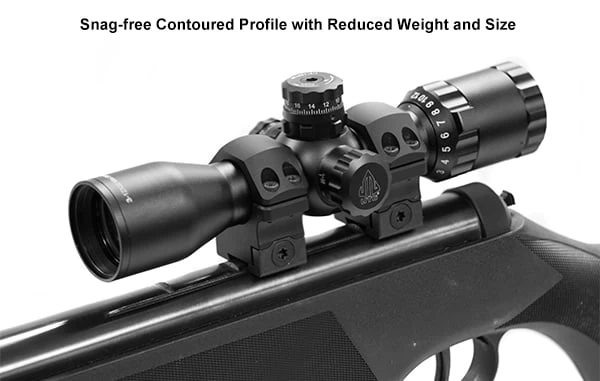

Snag-free Contoured Profile with Reduced Weight and Size
•            6061-T6
Aircraft Aluminum and Steel Construction with a Matte Black Finish

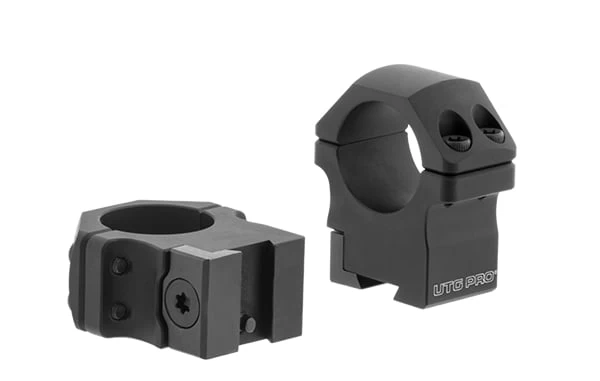

•            2 Piece
Ring Set, Each Equipped with 4 Top Torx Screws, Mounts onto Most Dovetail Rails
Â
NOTE: We recommend to tighten the ring top screws with a
torque value of about 25 inch-lb and the side plate screw with torque value of
about 45 inch-lb.
Material: Aluminum
Weight: 2.5oz
Pieces:Â 2
Rail Type: Dovetail
Profile Level: Medium
Ring Diameter: 1 Inch
Ring Width: 22 mm
Max. Scope Outer Dia.: 55 mm
Screws Per Ring: 4
A:Â Â Â Â Â Â Â Â Â Â Â 1 Inch
B:Â Â Â Â Â Â Â Â Â Â Â 22mm
C:Â Â Â Â Â Â Â Â Â Â Â 15mm
