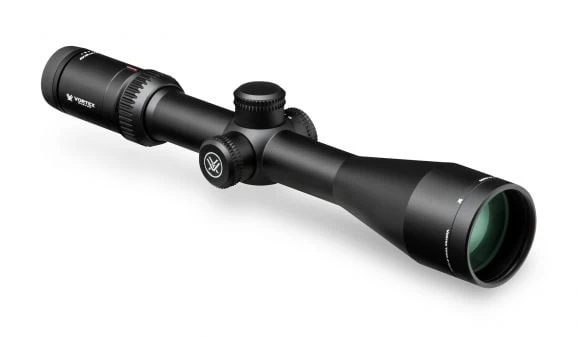

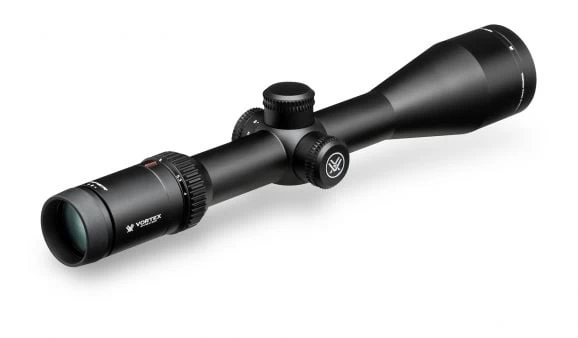

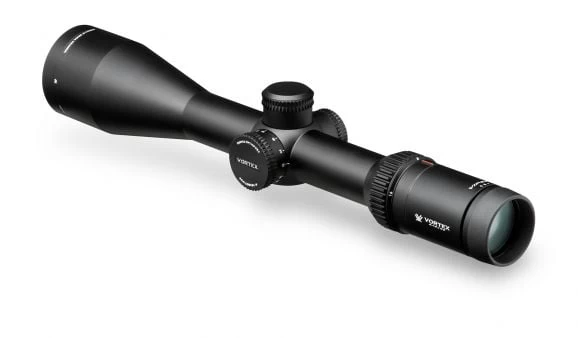

Vortex VIPER HS 4-16X50 Dead-Hold BDC (MOA) Reticle 30 Mm Tube

Vortex Viper HS riflescopes offer hunters and shooters an
array of features sure to be well received. The advanced optical system,
highlighted with a 4x zoom range, provides magnification versatility. A
forgiving eye box with increased eye relief gets shooters on target quickly and
easily. Built on an ultra-strong 30mm one-piece machined aluminum tube, the
Viper HS delivers increased windage and elevation travel for optimal
adjustment.

Viper HS 4-16×50-Dead-Hold BDC (MOA) Dimensions (in
inches)



Lengths
L1	L2	L3	L4	L5	L6
13.7	2.0	2.2	5.6	4.2	3.6



Heights
H1	H2
2.26	1.63



Dual use for Shooting
Tactical / Hunting

Included in the Box

• Protective
  lens caps

• 4-inch
  sunshade

• Lens
  cloth



Magnification 4-16x

Objective Lens Diameter 50 mm

Eye Relief 4.0 inches

Field of View 27.4-7.4 ft/100 yds

Tube Size 30 mm

Turret Style Capped

Adjustment Graduation 1/4 MOA

Travel Per Rotation 12 MOA

Max Elevation Adjustment 50 MOA

Max Windage Adjustment 50 MOA

Parallax Setting 50 yards to infinity

Length 13.7 inches

Weight 20.4 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download

OPTICAL FEATURES

XD™ Lens Elements Extra-low dispersion (XD) glass increases
resolution and color fidelity, resulting in crisp, sharp images.

XR™ Fully Multi-Coated Proprietary coatings increase light
transmission with multiple anti-reflective coatings on all air-to-glass
surfaces.

Second Focal Plane Reticle Scale of reticle maintains the
same ideally-sized appearance. Listed reticle subtensions used for estimating
range, holdover and wind drift correction are accurate at the highest
magnification.

CONSTRUCTION FEATURES

Tube Size 30 mm diameter provides maximized internal
adjustment and strength.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization
provides a low-glare matte surface and helps camouflage the shooter’s position.

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

Capped Reset Turrets Allow quick re-indexing of the turret
(no tool needed) to zero after sighting in the riflescope. Caps provide
external protection for turret.

Side Focus Adjustment located on left side of turret housing
is easily accessible from shooting position. Provides optimal image focus and
parallax removal.

INTERNAL MECHANISM
DESIGN FEATURES

Precision-Force Spring System Uses premium components in the
erector-spring system to ensure maximum repeatability and ease of adjustment.

Precision-Glide Erector System This system ensures the
components in the zoom lens mechanism glide smoothly and cleanly through all
magnification ranges.

CONVENIENCE FEATURES

MAG-View Fiber Optic Provides a highly visible reference
point for the magnification setting.

Fast Focus Eyepiece Allows quick and easy reticle focusing.

RETICLE





Dead-Hold BDC (MOA)

Customized hashmark design helps eliminate guesswork on
holdover and windage corrections. Good for hunting/shooting at varying ranges
where estimating holdover is a concern.

Subtension detail for Viper HS 4-16×50 riflescope with
Dead-Hold BDC MOA reticle.



OUR VIP WARRANTY IS
ABOUT YOU, NOT US.

VIP stands for a Very Important Promise to you, our
customer. We will repair or replace your Vortex® product in the event it
becomes damaged or defective—at no charge to you. If we cannot repair your
product, we will replace it with a product in perfect working order of equal or
better physical condition.

You see, it doesn’t matter how it happened, whose fault it
was or where you purchased it. If you ever have a problem, no matter the cause,
we promise to take care of you. You can count on the VIP Warranty for all
Vortex Optics riflescopes, prism scopes, red dots, rangefinders, binoculars,
spotting scopes, tripods and monoculars.

UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED

The VIP Warranty does not cover loss, theft, deliberate
damage or cosmetic damage that does not hinder the performance of the product.
